Engineered for Discovery

Enhance science learning with a microscope designed for labs and classrooms featuring LED lighting, precision optics and a double-layered mechanical stage.

Explore the Lineup

Monocular
Binocular
Trinocular
Digital
Multi-Purpose

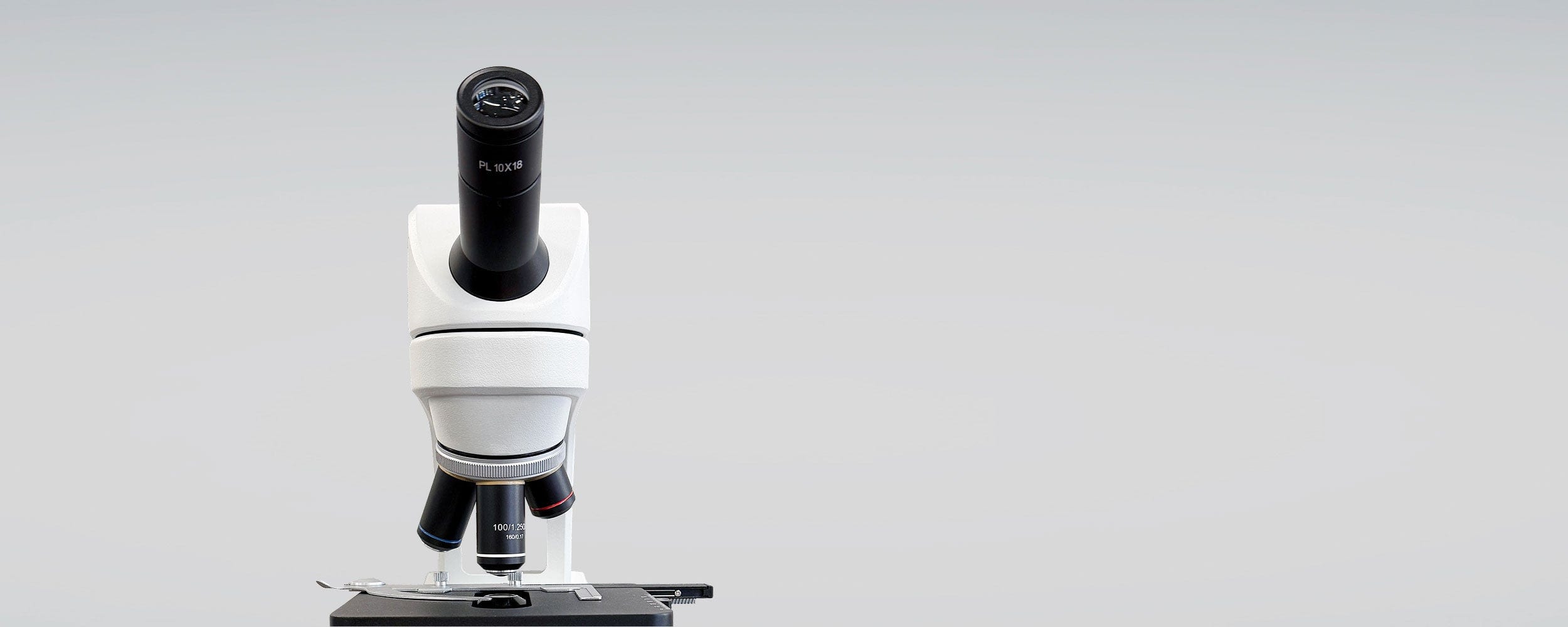

EDU550M Specifications

🔬 Optical System

Optical System: Finite
Head: Monocular, 30° inclined.
Eyepiece: 10X magnification, 18mm field of view (FN 18), 23.2mm mount.

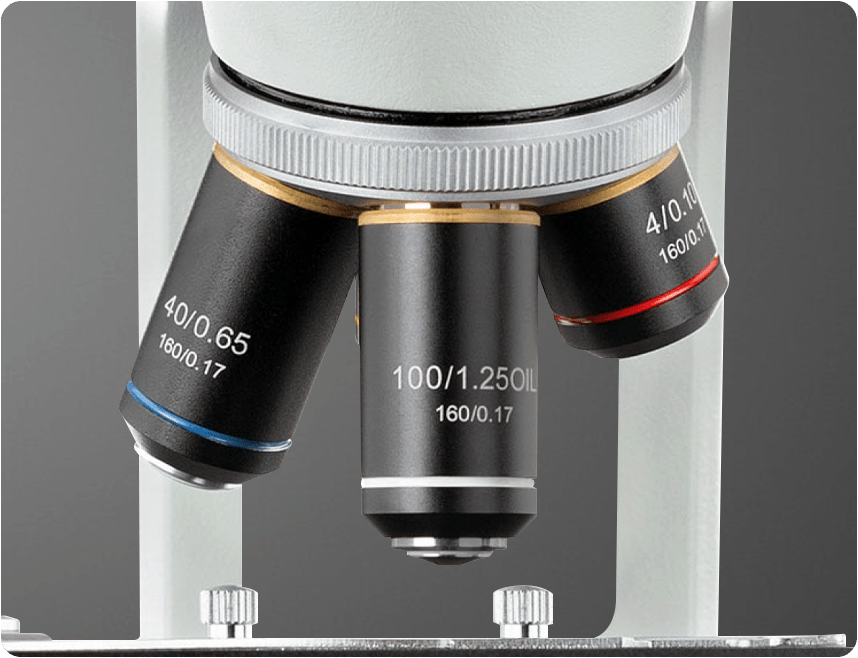

Objective Lenses: 4X, 10X, 40X (spring-loaded), 100X oil immersion (spring-loaded). Covers standard magnification range for biological applications.
Nosepiece: Quadruple reversed (convenient access and quicker objective switching).

⚙️ Mechanical & Stage Control

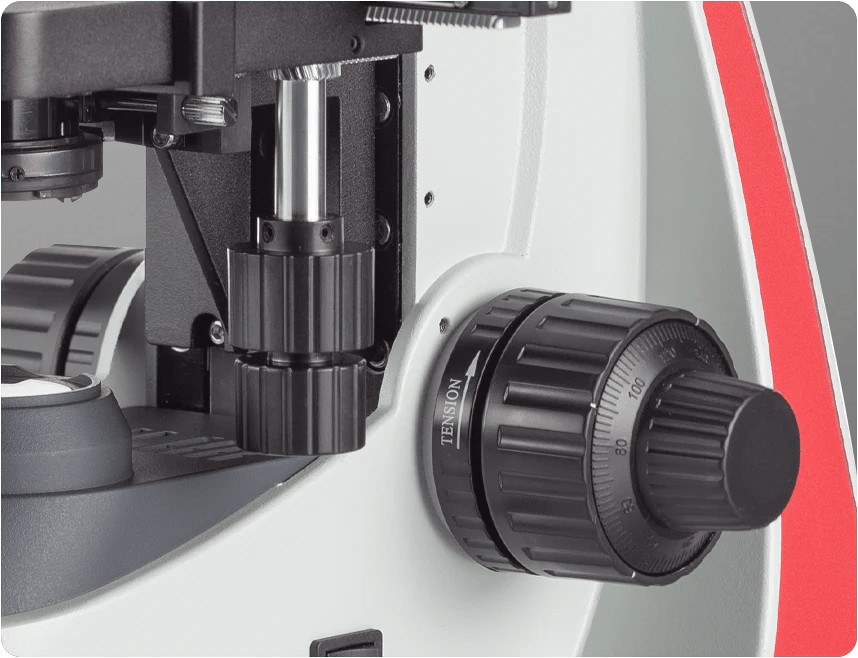

Focusing System: Coaxial coarse & fine focus 30mm total, 0.002mm fine adjustment.
Stage: Double-layer mechanical (better for precise slide movement).
Stage Size: 140mm x 127mm
X-Y Translation Range: 76mm x 53mm (ample travel area).

💡 Illumination

Condenser: Abbe condenser, NA 1.25 with iris diaphragm.

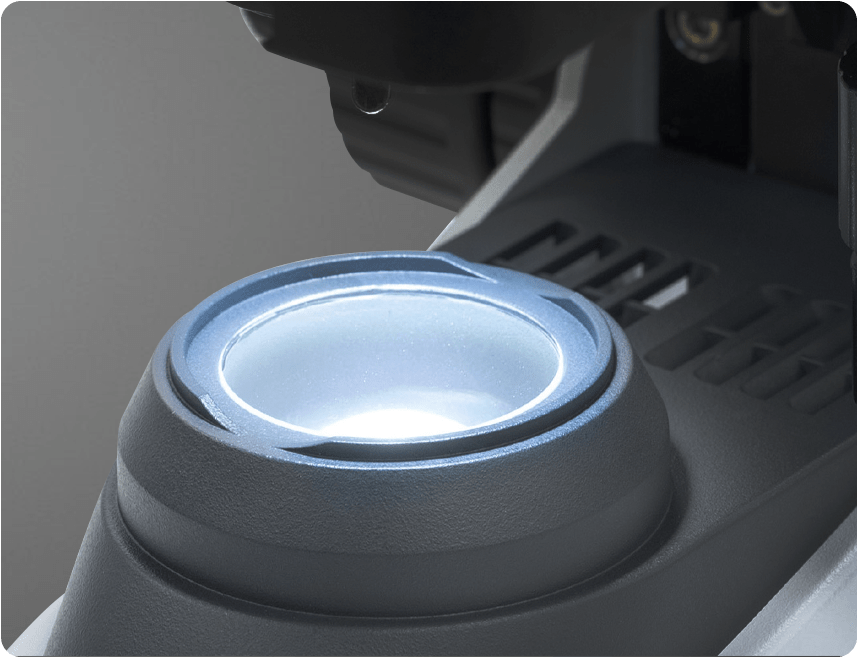

Illumination: 3W LED with variable intensity (bright, long-lasting, and energy efficient).

🔌 Power

AC 100-240V, 50/60Hz — supports global voltage.

Buy now

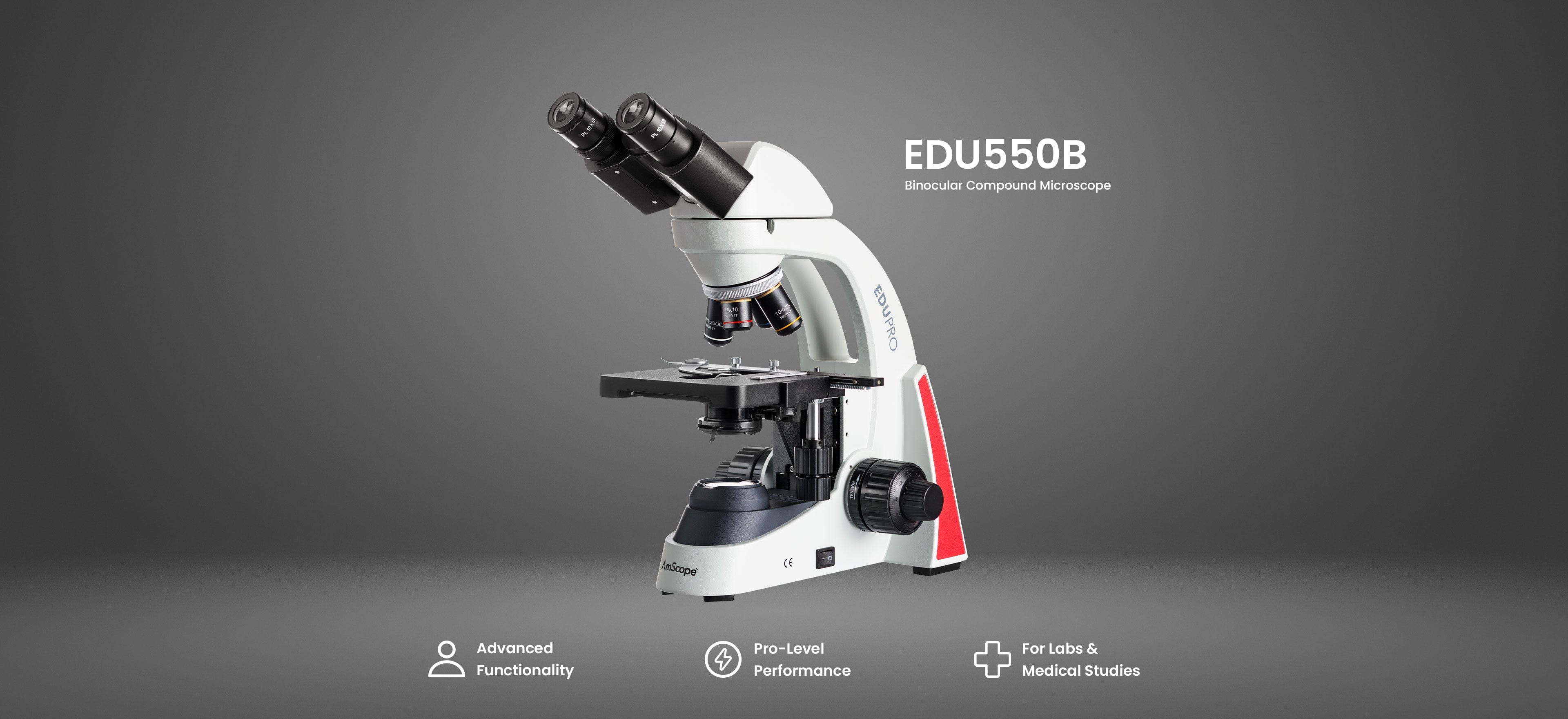

EDU550B Specifications

🔬 Optical & Viewing System

Optical System: Finite.
Head: Binocular, 30° inclined.
Eyepieces: 10X magnification, 18mm field of view (FN 18), 23.2mm mount.
Objective Lenses: 4X, 10X, 40X (spring-loaded), 100X (oil immersion, spring-loaded). Covers standard magnification range for biological applications.
Nosepiece: Quadruple reversed (easy objective switching and clear lens visibility)
Interpupillary Adjustment: 48–75mm, compensation-free Siedentopf .

⚙️ Mechanical & Stage Control

Focusing System: Coaxial coarse & fine focus with: 30mm total, 0.002mm fine adjustment.
Stage: Double-layer mechanical — stable and accurate.
Stage Size: 140mm x 127mm
X-Y Translation Range: 76mm x 53mm (ample space for full slide scanning).

💡 Illumination

Condenser: Abbe condenser, NA 1.25 with iris diaphragm.
Illumination: 3W LED with variable intensity (energy-efficient and cool operation).

🔌 Power

Input: AC 100-240V, 50/60Hz — supports global voltage.

Buy now

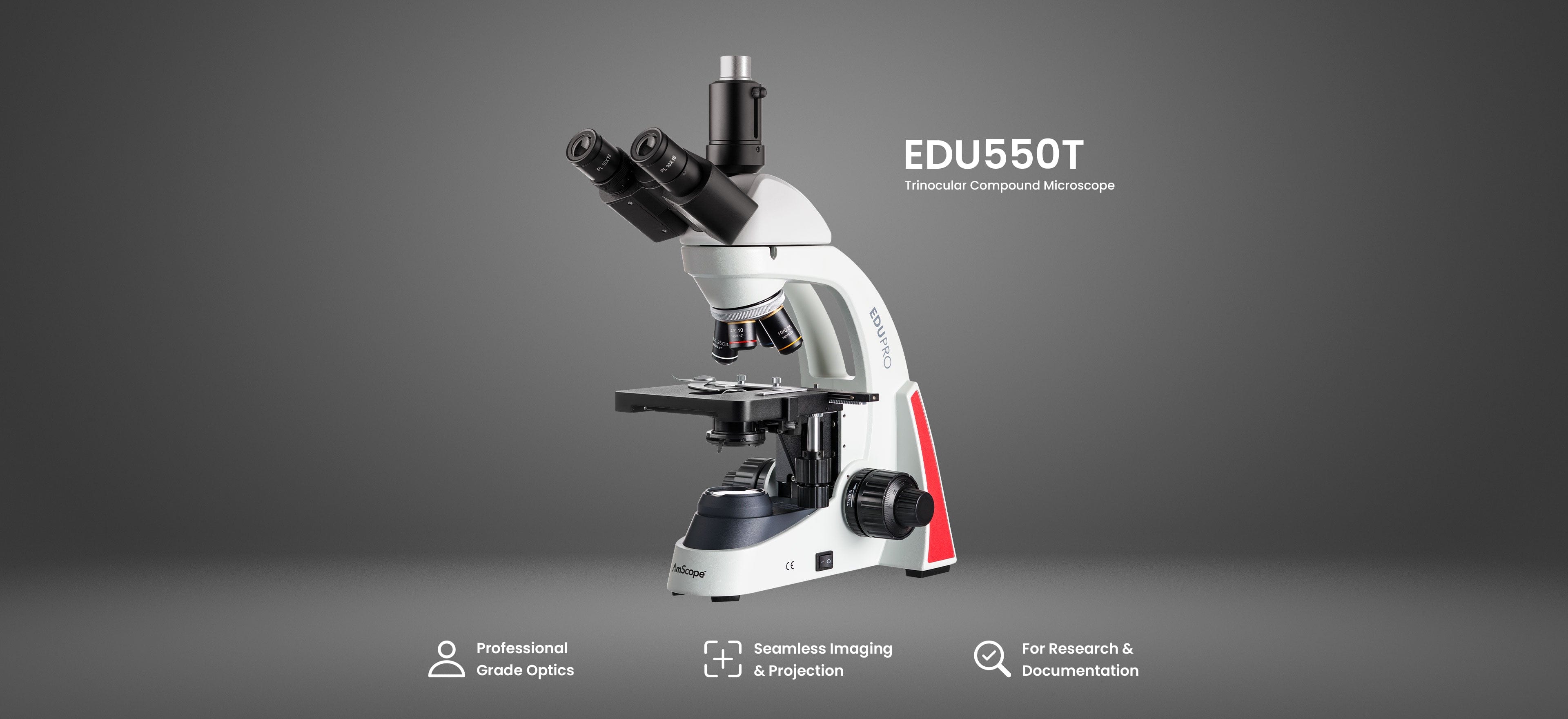

EDU550T Specifications

🔬 Optical and Imaging Capabilities

Optical System: Finite.
Head: Trinocular, 30° incline (comfortable viewing with a third port for imaging).
Eyepieces: 10X magnification, FN 18mm field of view, 23.2mm mount (standard compatibility).
Objective Lenses: 4X, 10X, 40X (spring-loaded), 100X (oil immersion, spring-loaded). Covers standard magnification range for biological applications.
Nosepiece: Quadruple reversed (easy lens switching, improved workflow)
Interpupillary Adjustment: 48–75mm, compensation-free Siedentopf (easy for multiple users).
Photo Port: Height-adjustable 23.2mm tube interface (C-mount optional — camera-ready for documentation or live viewing).

⚙️ Mechanical & Stage Control

Focusing System: Coaxial coarse and fine focus with: 30mm total, with 0.002mm fine adjustment.
Stage: Double-layer mechanical — precise control and slide stability.
Stage Size: 140mm x 127mm
X-Y Translation Range: 76mm x 53mm — smooth movement for scanning specimens.

💡 Illumination

Condenser: Abbe condenser, NA 1.25 with iris diaphragm — adjustable lighting control.
Illumination: Variable-intensity 3W LED — bright, efficient, and cool.

🔌 Power

Input: AC 100–240V, 50/60Hz — supports global voltage.

Buy now

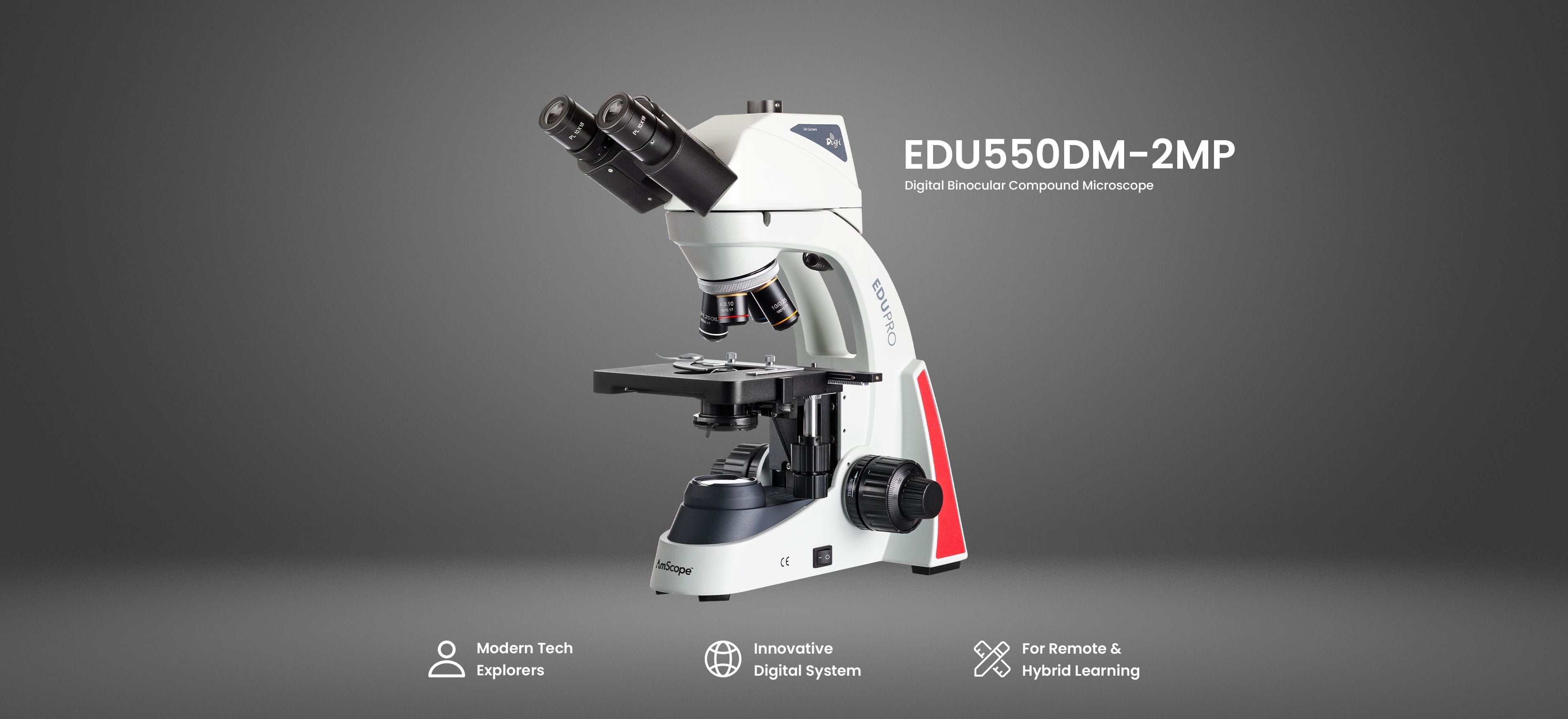

EDU550DM-2MP Specifications

🔬 Optical and Imaging Capabilities

Optical System: Finite.
Head: Binocular, 30° incline — ergonomic viewing for extended sessions.
Eyepieces: 10X, FN 18mm, 23.2mm mount — clear image with wide field of view and accessory compatibility.
Objective Lenses: 4X, 10X, 40X (spring-loaded), 100X (oil immersion, spring-loaded). Covers standard magnification range for biological applications.
Nosepiece: Quadruple reversed — allows fast and clear objective switching.
Interpupillary Adjustment: 48–75mm, compensation-free Siedentopf — customizable for different users.

⚙️ Mechanical & Stage Control

Focusing System: Coaxial coarse & fine focus, with: 30mm total, 0.002mm fine precision — excellent for detailed specimen work.
Stage: Double-layer mechanical — precise and stable slide positioning.
Stage Size: 140mm x 127mm
X-Y Translation Range: 76mm x 53mm — enables complete coverage of standard slides.

💡 Lighting and Illumination

Condenser: Abbe, NA 1.25 with iris diaphragm — supports high-resolution imaging and light control.
Illumination: 3W variable-intensity LED — bright, energy-efficient, and long-lasting.

🔌 Power

AC Input: 100–240V, 50/60Hz, 0.7–1.4A — supports global voltage.

Buy now

EDU552B Specifications

🔬 Optical and Imaging Capabilities

Optical System: Finite.
Head: Monocular, 30° inclined.
Eyepieces: 10X magnification, 18mm field of view (FN 18), 23.2mm mount (compatible with many accessories).
Objective Lenses: 4X, 10X, 40X (spring-loaded), 100X oil immersion (spring-loaded). Covers standard magnification range for biological applications.
Nosepiece: Quadruple reversed (convenient access and quicker objective switching).

⚙️ Mechanical & Stage Control

Focusing System: Coaxial coarse & fine focus with: 30mm total, 0.002mm fine adjustment (good for precise focusing).
Stage: Double-layer mechanical (better for precise slide movement).
Stage Size: 140mm x 127mm
X-Y Translation Range: 76mm x 53mm (ample travel area for scanning slides).

💡 Lighting and Illumination

Condenser: Abbe condenser, NA 1.25 with iris diaphragm (versatile for adjusting light for different magnifications).
Illumination: 3W LED with variable intensity (bright, long-lasting, and energy efficient).

🔌 Power
