AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination
Key Features
- A unique multi-purpose microscope which combines transmitted and reflected light sources for viewing a wide range of specimens
- The circular stage has a fixed Abbe condenser for viewing slide-mounted specimens.
- A flexible gooseneck light can be positioned to provide oblique lighting which can render shadows on hard-to-see microorganisms or minerals.
- 40X to 1000X magnification range using four color-coded objective lenses
- Symmetrical coaxial focus knobs are useful for right- or left-handed users.
- Outfit your entire lab—bulk pricing tailored for schools and universities
- Email: info@amscope.com| Phone: +1-888-950-2888
AmScope’s new EduPro line includes a cohesive assortment of microscopes intended for educational institutions ranging from middle school to college. EduPro microscopes are meticulously designed and manufactured to achieve enduring quality with a modern, elegant aesthetic.
From beginning to advanced biology, the compound microscope has long been a standard tool in classrooms for studying cell structures and functions, observing microorganisms, and much more.
The dual-illumination model offers the flexibility to view a wider range of specimens using traditional specimen slides, culturing dishes, and unmounted objects. Rather than using a typical rectangular stage with a caliper, this model uses a round stage with positioning clips to allow for more diversity.
The included stage has a fixed Abbe condenser which provides the same functionality as the standard biological model for viewing cells, microorganisms, and other microscopic structures. The stage can accommodate standard slides, depression slides, and dishes for viewing anything from onion cells to live protozoa.

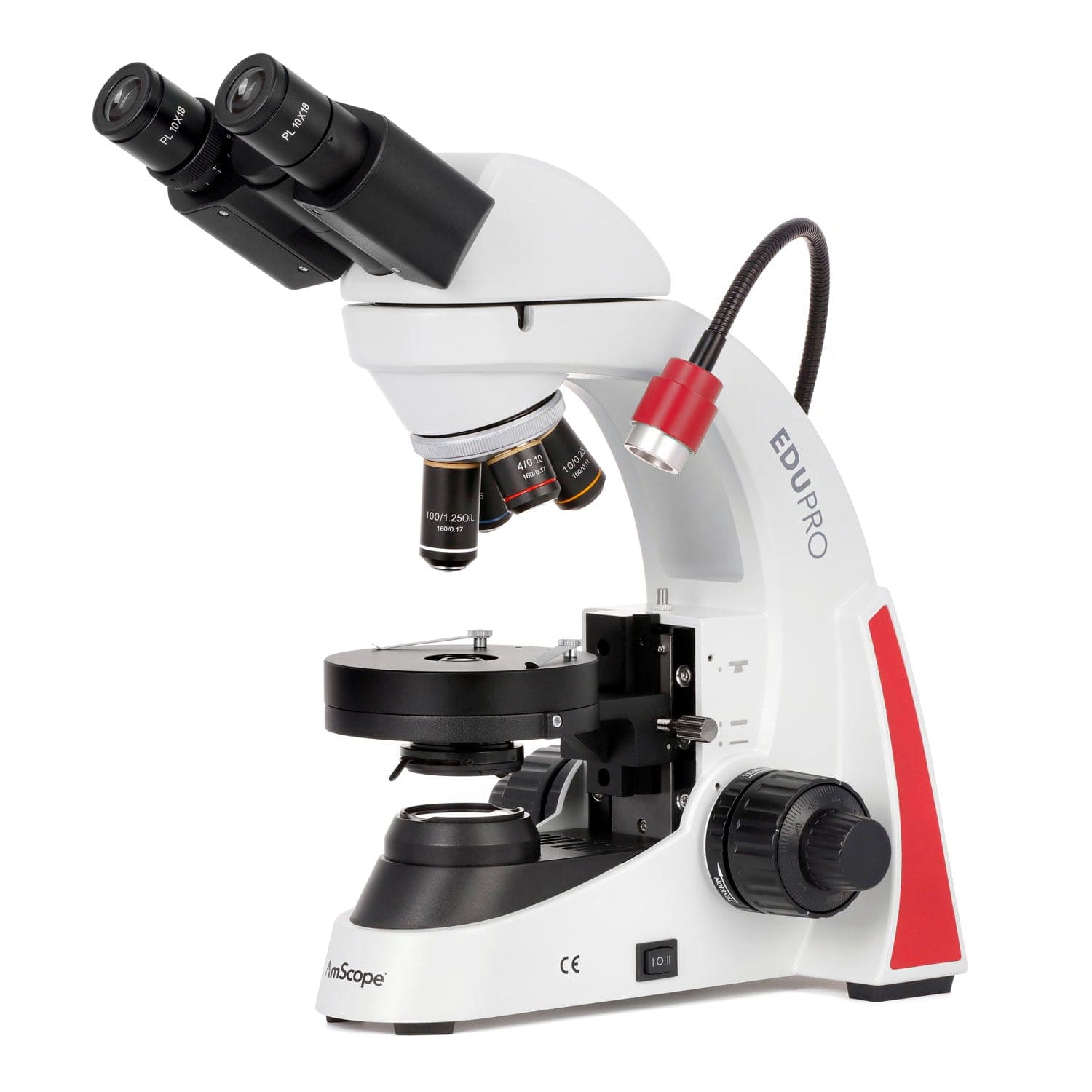

What makes this model even more unique is the addition of a gooseneck light which can be positioned behind, above, or to the side of the specimen being observed. This type of reflected lighting is commonly used for viewing opaque objects such as textiles, plastics, circuit boards, and dry soil. Certain subjects including microorganisms in water can benefit from side-lighting which creates a shadow effect.
Specifications
| Optical System | Finite |
| Mechanical Tube Length | 160mm |
| Head | Binocular, 30° incline |
| Interpupillary Adjustment | Compensation-free Siedentopf, 48-75mm |
| Eyepieces | 10X, FN 18mm, 23.2mm mount |
| Nosepiece | Quadruple reversed |
| Objective Lenses | 4X, 10X, 40X (spring), 100X (spring, oil) |
| Focusing System | Coaxial coarse and fine focus, upper limit-stop, tension-control |
| Focus Travel | 30mm, 0.002mm fine-adjustment |
| Stage | Round with clips |
| X-Y Translation Range | ⌀108mm |
| Sub-stage Condenser-holder | Fixed |
| Condenser | Abbe, NA1.25, iris diaphragm |
| Transmitted Illumination | Variable-intensity 3W LED |
| Power | AC Input: 100-240V, 50/60Hz, 0.35A DC Output: 6V, 1A |
Objective Lenses
| Magnification | Corrections | NA | Cover-glass Thickness |
|---|---|---|---|
| 4X | Achromatic | 0.10 | 0.17mm |
| 10X | Achromatic | 0.25 | 0.17mm |
| 40X | Achromatic | 0.65 | 0.17mm |
| 100X | Achromatic | 1.25 | 0.17mm |
AmScope products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:
• Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts.
• Ten Year Warranty for Euromex Microscopes: All our Euromex microscopes come with a ten (10) year factory warranty against manufacturing defects, covering labor and parts.
• One Year Warranty for Telescopes: All our telescopes come with a one (1) year warranty, except when specified in the description.
• One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description.
• One Year Warranty for Items labeled as “Product Ships From Manufacturer”: All products that are shipped directly from the manufacturer come with a one (1) year warranty, except when specified in the description.
Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc. Warranty does not cover microscopes, lenses cameras or other accessories that have become inoperable due to dirt or damage due to misuse or lack of maintenance.
Note: Buyers are responsible for return shipping and handling cost for warranty services. Our warranty covers parts and labor only.
