AmScope's DM300HD full HD digital compound microscope combines zoom optics, dual illumination, digital recording, four objectives (4X, 10X, 40X, 100X), a mechanical stage, and a 7” screen to create a an all-in-one system. Designed for use in classrooms, this all-in-one instrument provides the tools needed to efficiently view, record, and analyze. The ability to capture photos and videos, and perform calibrated on-screen measurements will be especially useful for studying fixed or live cells, bacteria, plants and soil, or water samples.
Zoom Optics
Allows users to further hone in on the specimen by utilizing the digital zoom which can be increased or decreased by rotating the Right knob on the control panel up to a maximum of 20X.
Digital Imaging

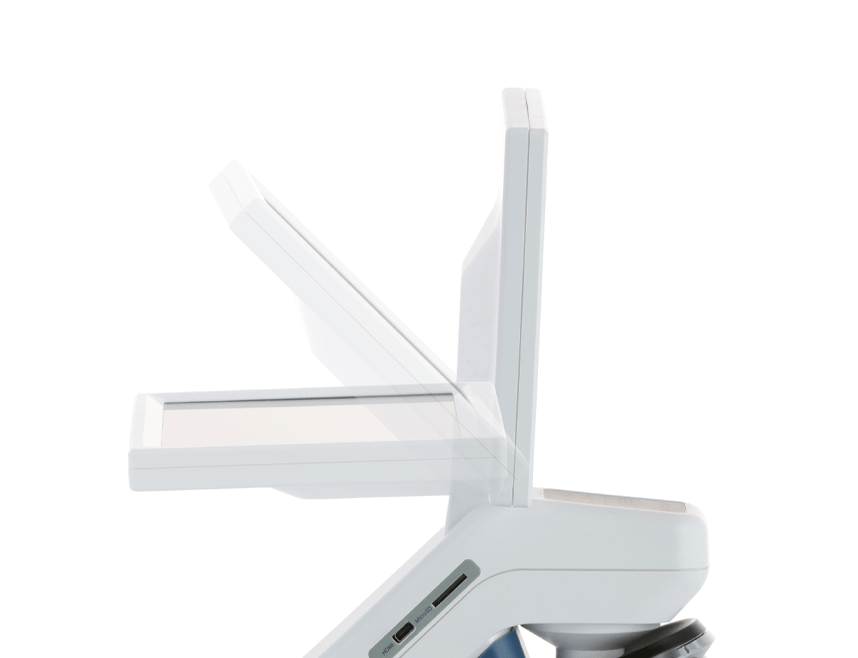

The built-in camera and 7” screen bring images to life with clarity and precision. Use the included controls to capture photos and video along with a variety of enhancement features such as exposure, brightness, and contrast. Save images and video directly to the included 32gb MicroSD card for storage and transfer to PC or MAC. You can also utilize the HDMI cable to connect to and display on a larger screen such as a TV or monitor. The screen can be folded down for easy transportation and storage.
Ergonomics and Illumination

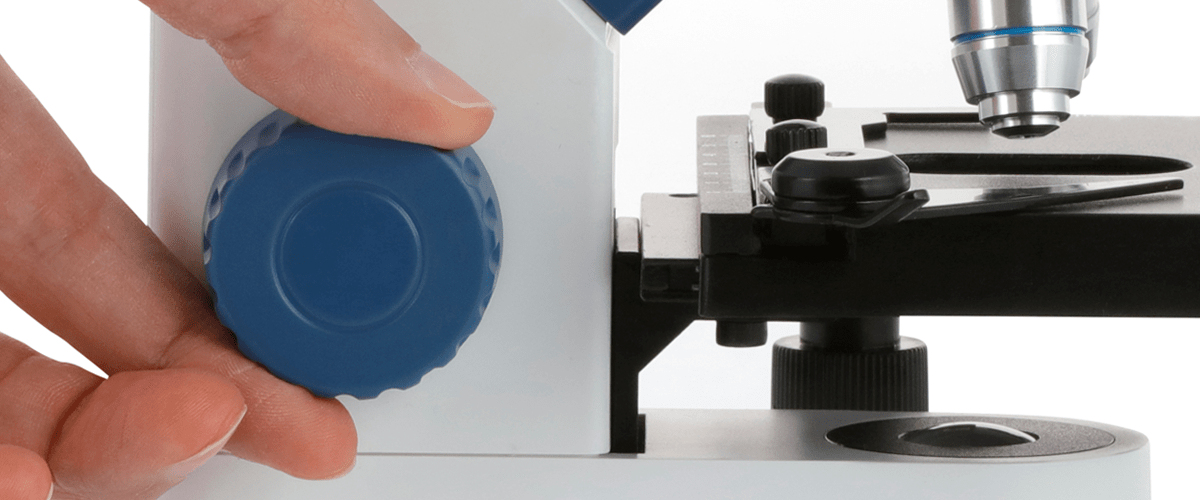

The microscope is pre-mounted to a tabletop stand with rack-and-pinion focus, and dual illumination. Focus is controlled by symmetrical knobs located on either side of the track-style column. The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides.
Rechargeable and Portable

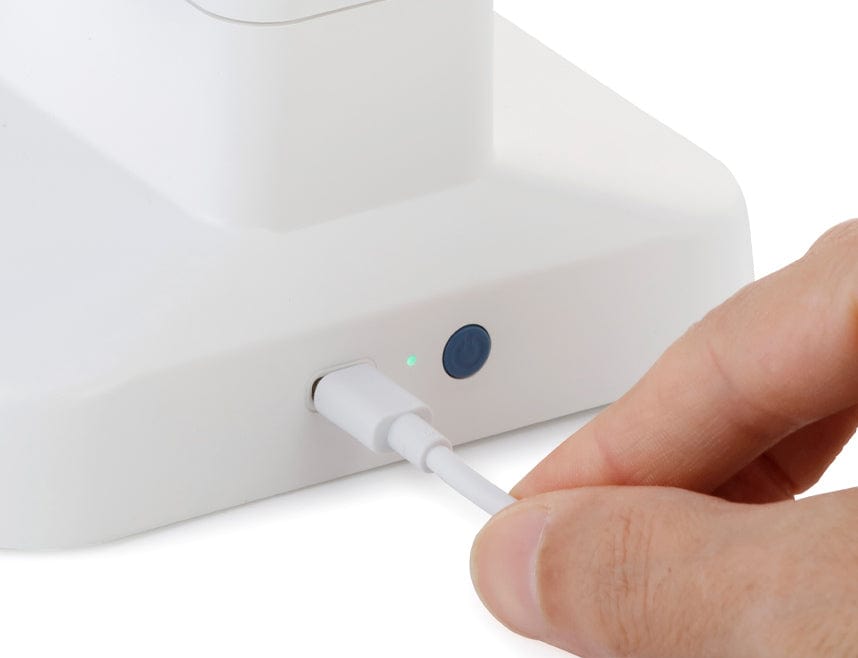

This microscope includes a battery that allows for portable use and can be operated while recharging using the included USB-C cable.
Specifications
| Lens |
|
| Optical System |
Finite-conjugate |
|
| Objective Turret |
Quadruple |
|
|
| Camera |
|
| Sensor Type |
CMOS |
|
| Sensor Optical Format |
1/2.8" |
|
| Active Recording Pixels |
2MP |
| Pixel Size |
2.0 x 2.0µm |
|
| Digital Zoom |
Up to 20X |
|
|
| Monitor |
|
| Display Size |
7" |
|
| Native Resolution |
1920 x 1080
|
|
|
| Illuminator |
|
| Illuminator Type |
Variable-intensity LED, Top 0.06W, Bottom 0.75W |
|
|
| General |
|
| Power Requirements |
5V/2A, 100-240VAC 50/60Hz wide-band |
|
| Battery |
Rechargeable Li-Ion 18650, 3.7V/2000MAH |
|

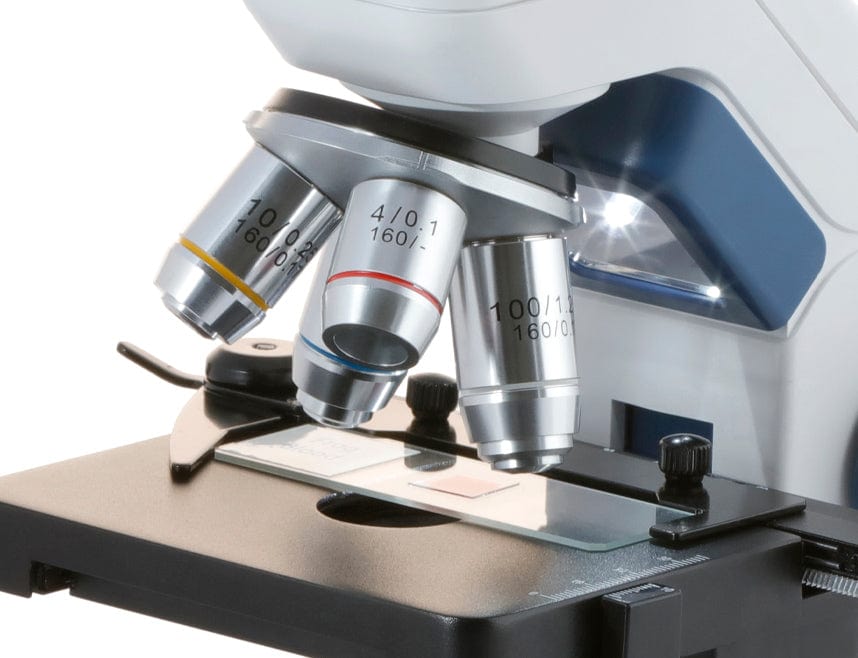

Objective Lenses
| Magnification |
Corrections |
NA |
Immersion Medium |
Cover-glass Thickness |
| 4X |
achromatic |
0.10 |
— |
0.17mm |
| 10X |
achromatic |
0.25 |
— |
0.17mm |
| 40X |
achromatic |
0.65 |
— |
0.17mm |
| 100X |
achromatic |
1.25 |
— |
0.17mm |
Packing List
- One DM300HD Microscope
- One USB Power Adapter
- One USB-C Cable
- One HDMI Cable
- Once Carrying/Storage Case
- One 32gb MicroSD Card
- One 18650 Rechargeable Battery
- Digital Manual Download Only
