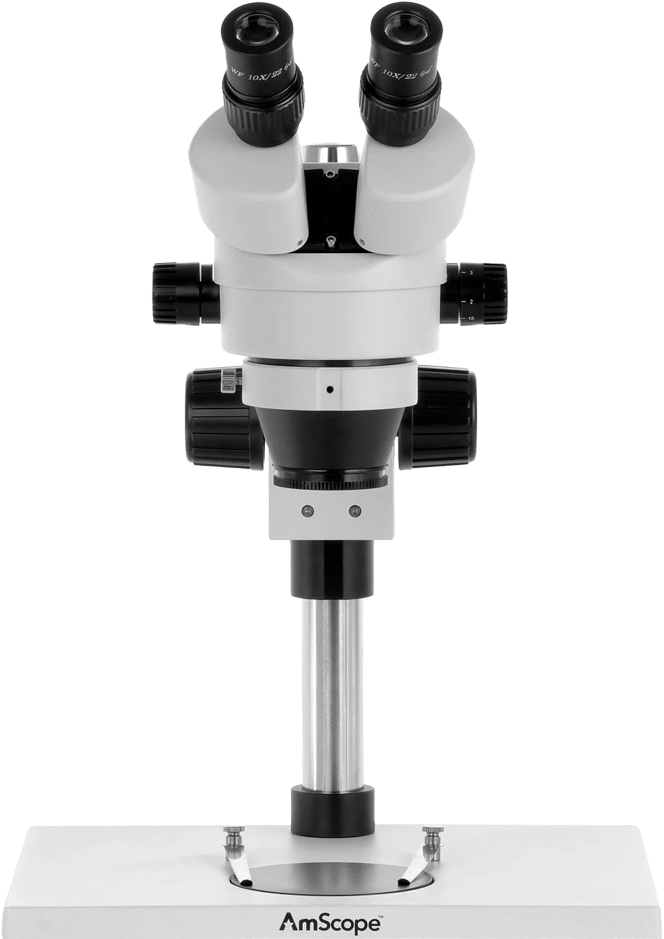

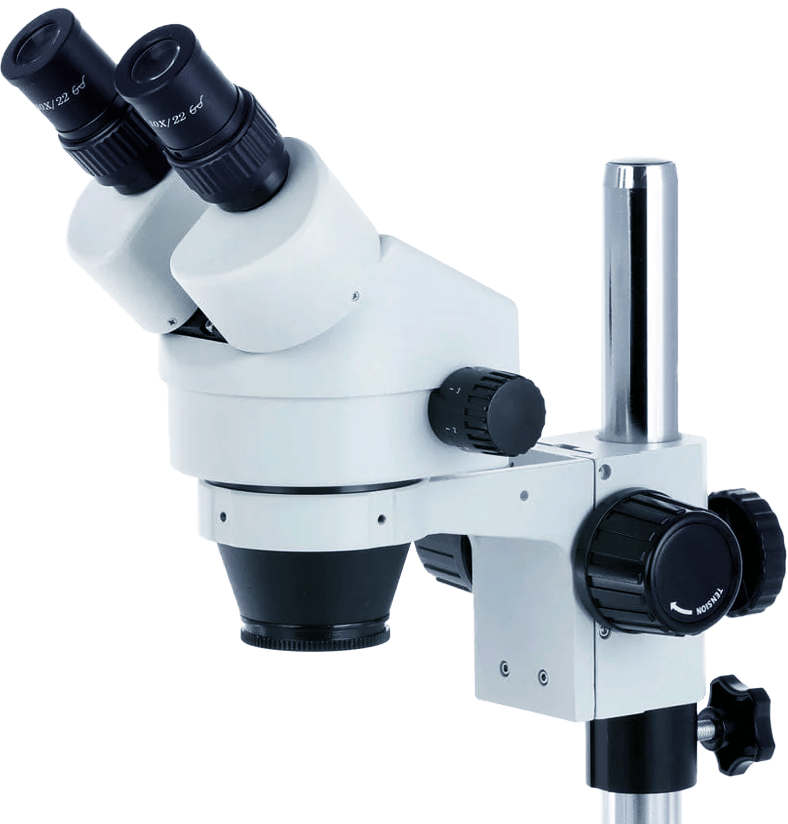

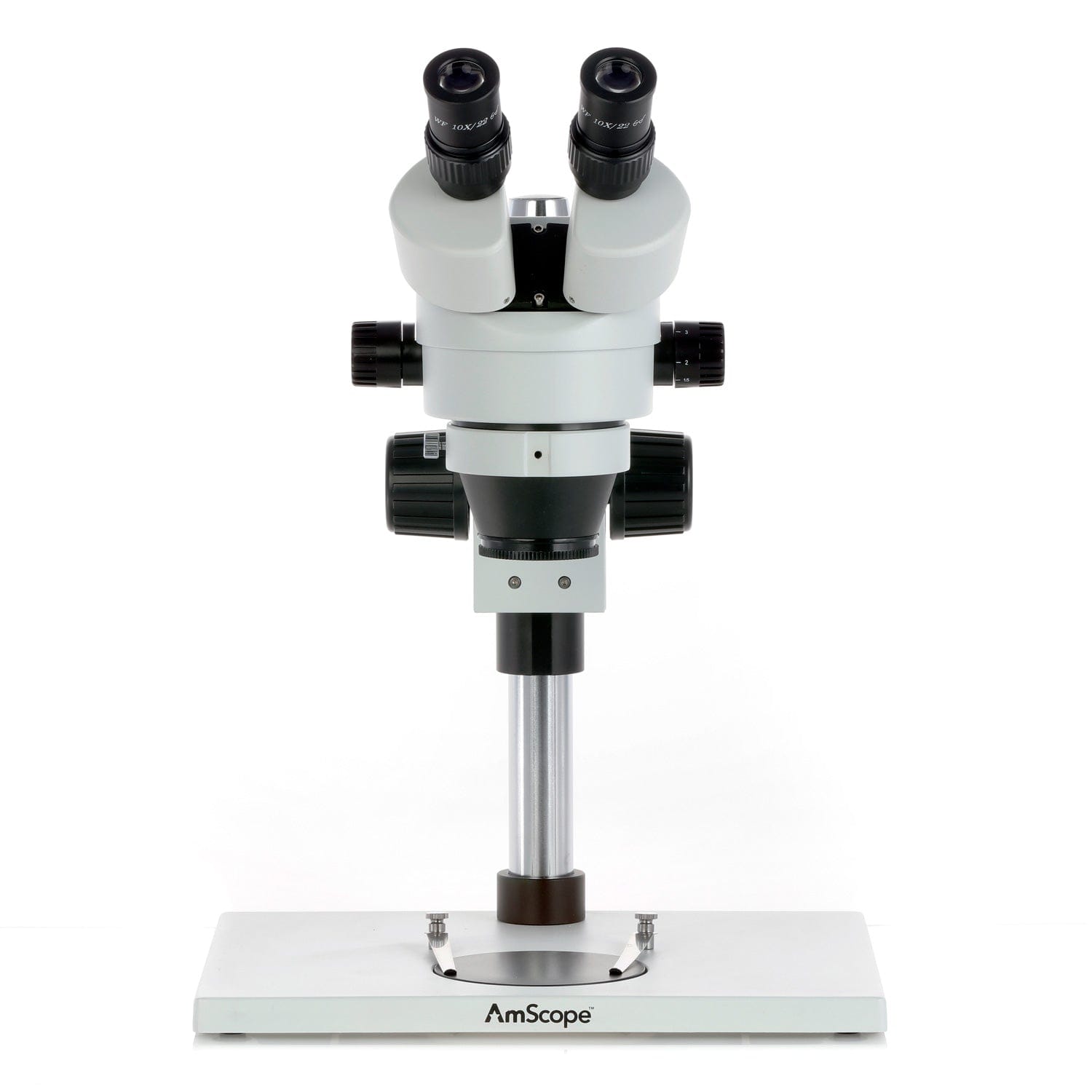

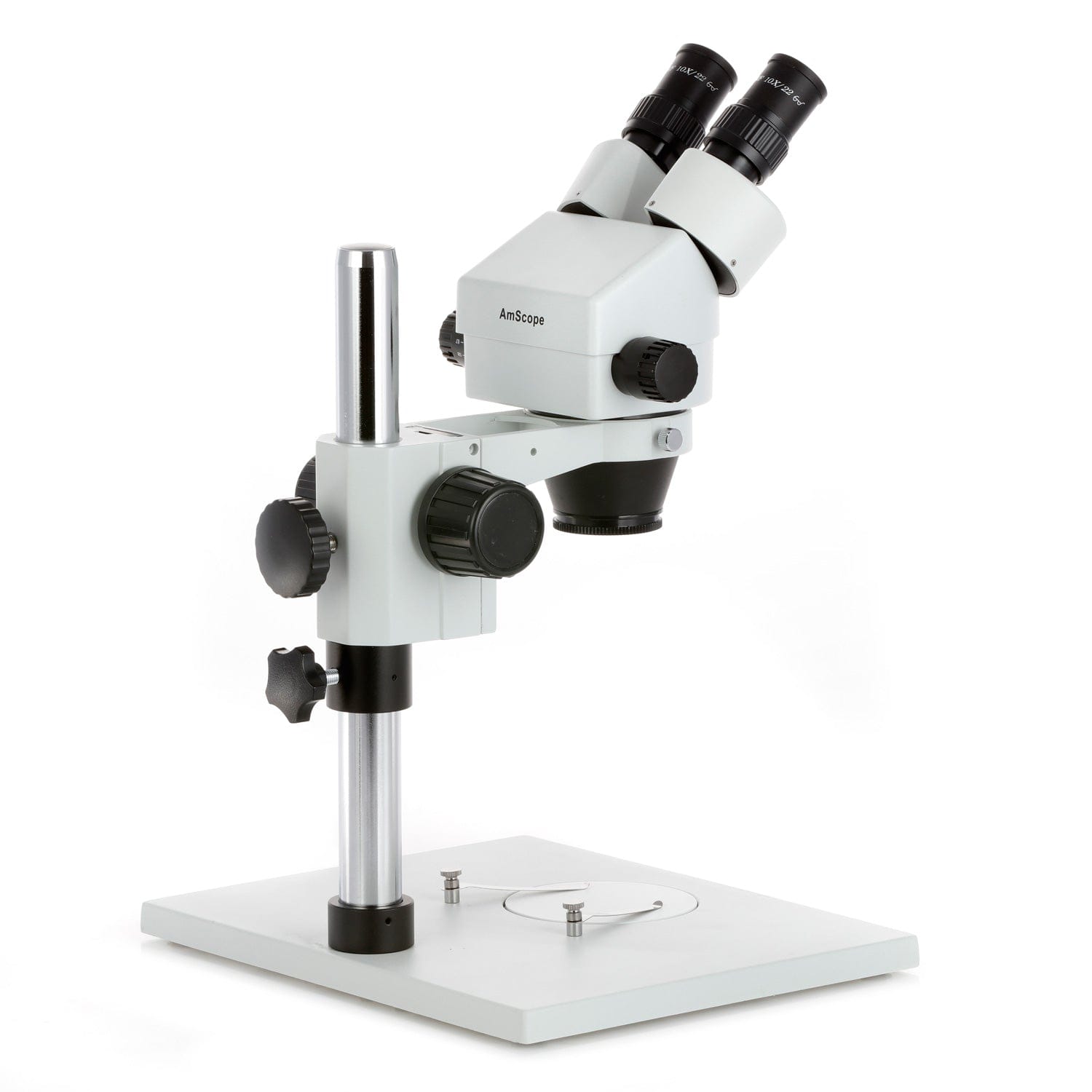

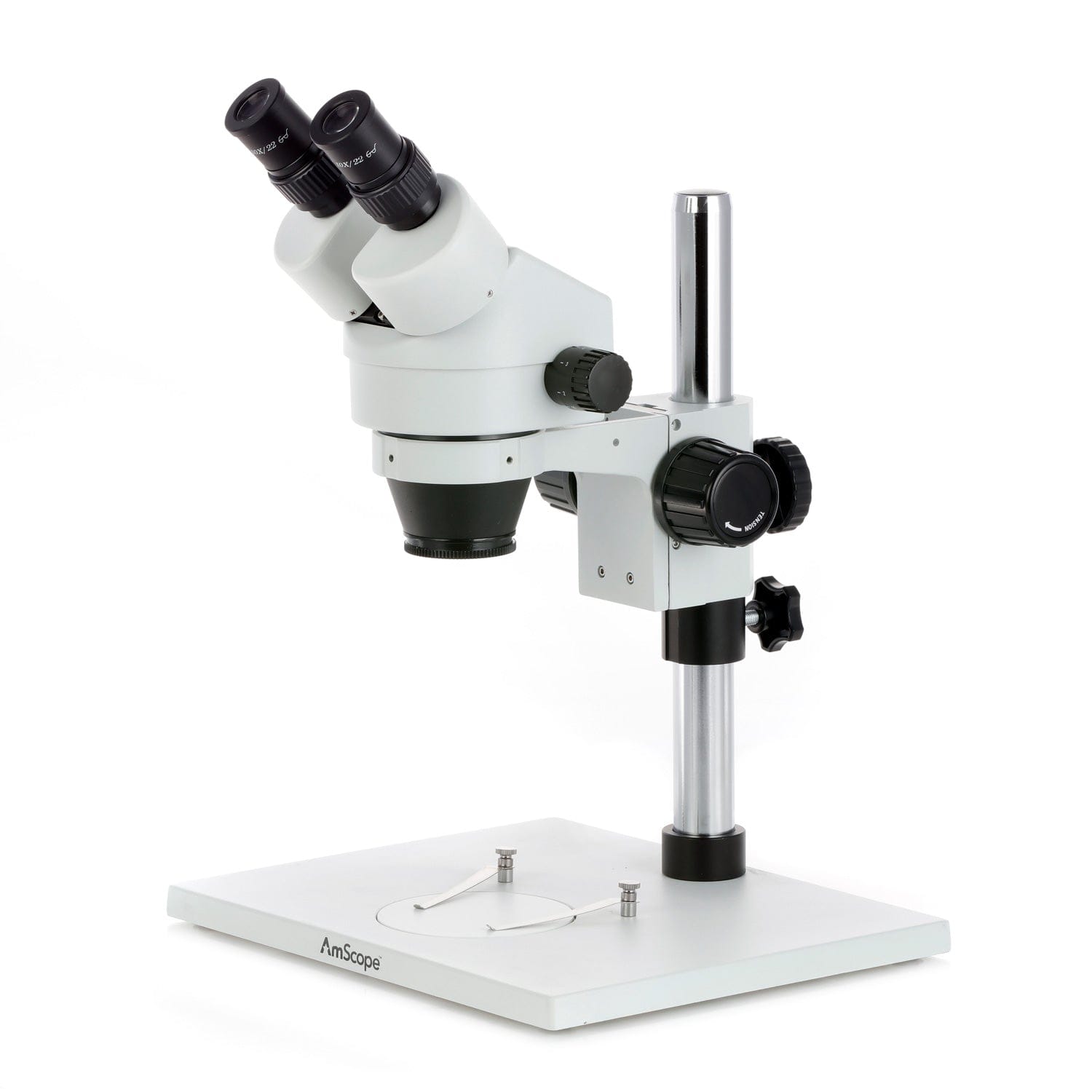

This is a binocular stereo zoom microscope with a pillar-stand with extra-large base. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this scope exceeds all expectations. It comes with SUPER widefield optics and super large stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort.

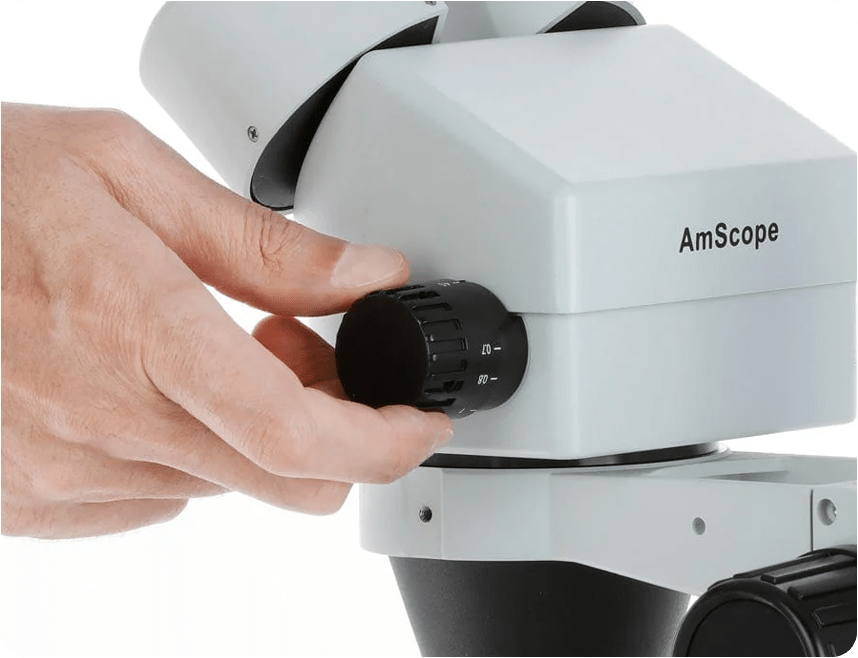

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.
This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.
Features :
0.7X-4.5X Continuous Zoom Objective Lenses
30mm Super Widefield Oculars
4" (100mm) Large Native Working Distance

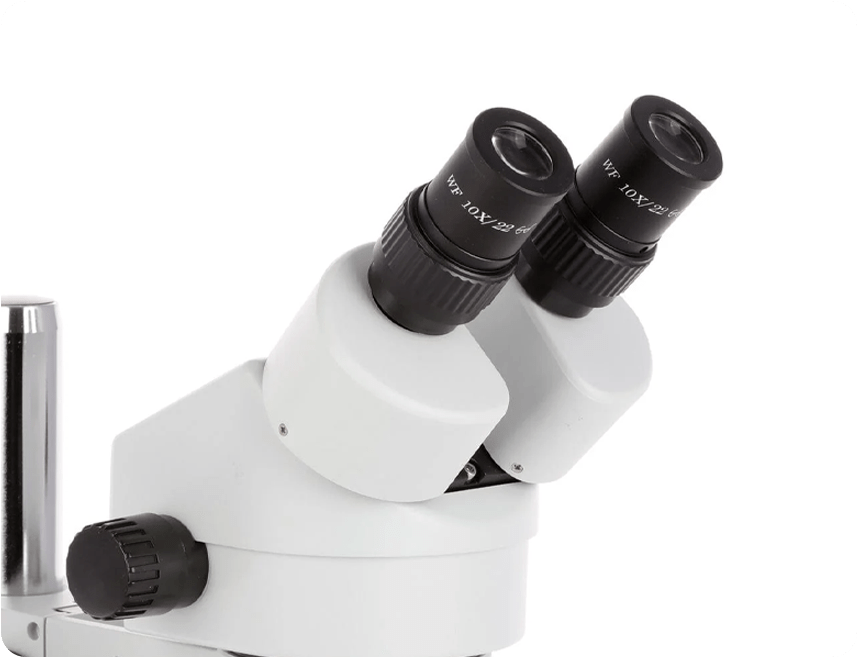

45 Degree Inclined Ocular Tubes
Crystal Clear Original True Color Images
Erect Sharp Stereo Images over a Super Widefield of View
High Resolution with Great Flatness and Contrast
Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
Both Ocular Tubes with Adjustable Diopters
Adjustable Interpupillary Distance
Full Optical Glass Elements
Precise Ground Glass Lenses
All Metal Mechanical Components
Metal Pillar Stand Finished with Stain Resistant Enamel
Specifications

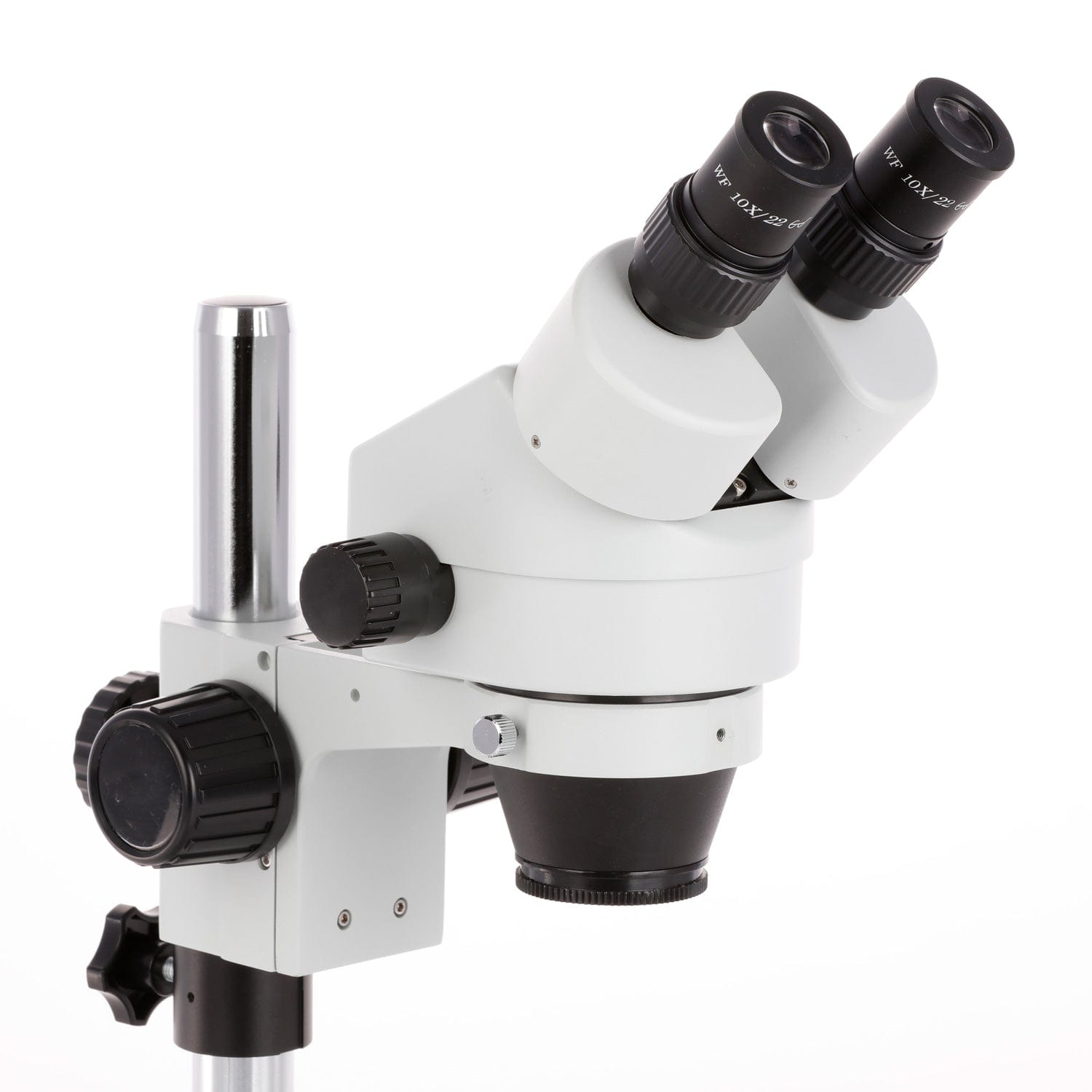

| Microscope Head |
| Head Type |
Binocular, 45° incline, 360° rotatable |
| Optical System |
Greenough stereoscopic |
| Interpupillary Adjustment |
Compensation-free gemel, 54-76mm |
| Ocular-port Diameter |
30mm |
| Dioptric Adjustment |
Both oculars, ±5dp |
| Eyepieces |
10X |
| Objective Lenses |
0.7X-4.5X zoom |
| Objective Numerical Aperture |
0.065 @ 4.5X
0.02 @ 0.7X |
| Objective Resolution |
195 lp/mm @ 4.5X
60 lp/mm @ 0.7X |
| Native Field-of-View (10X Eyepieces) |
4.4mm-28.6mm |
| Native Working Distance |
100mm |
| Auxiliary (Barlow) Lens |
none included |

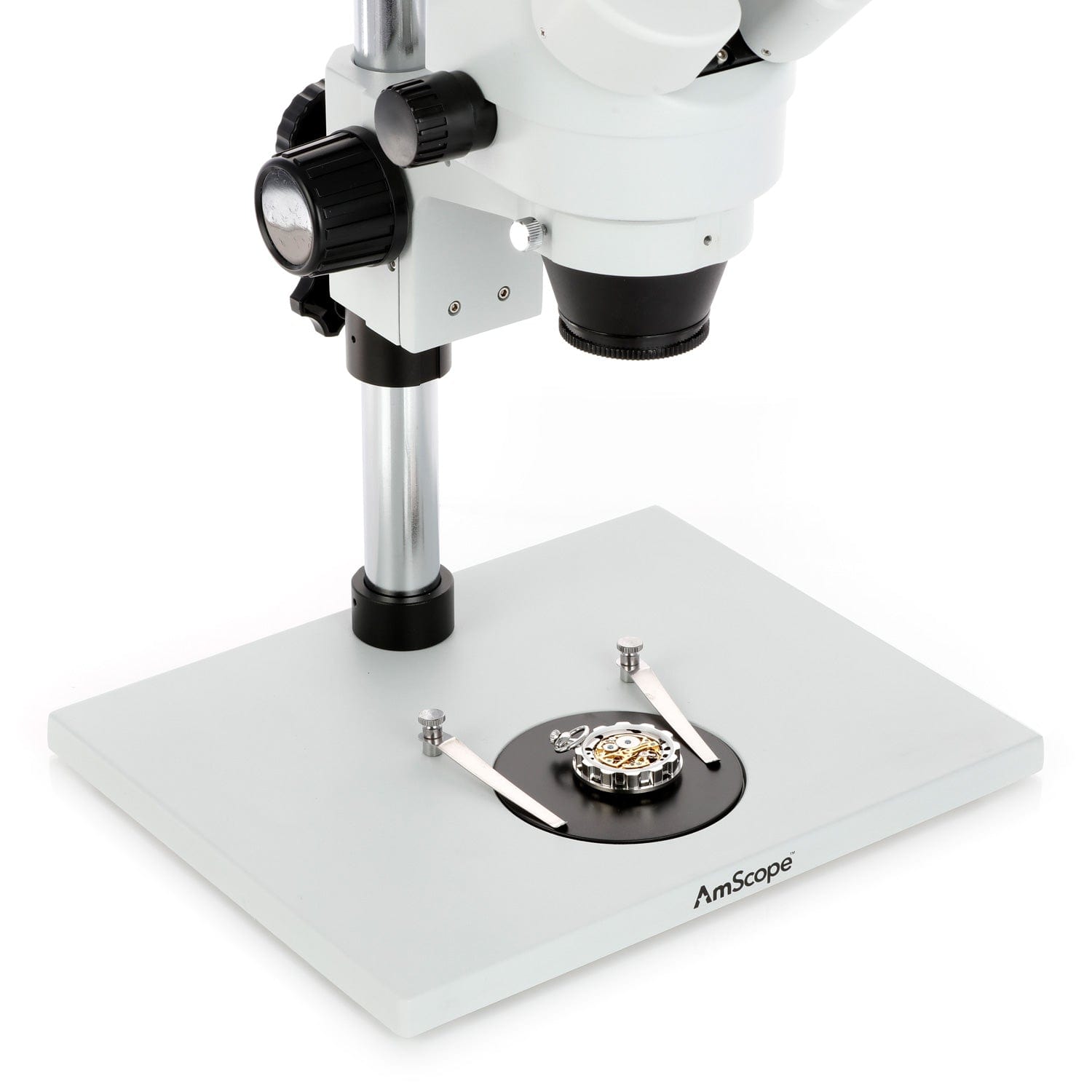

| Stand |
| Stand Type |

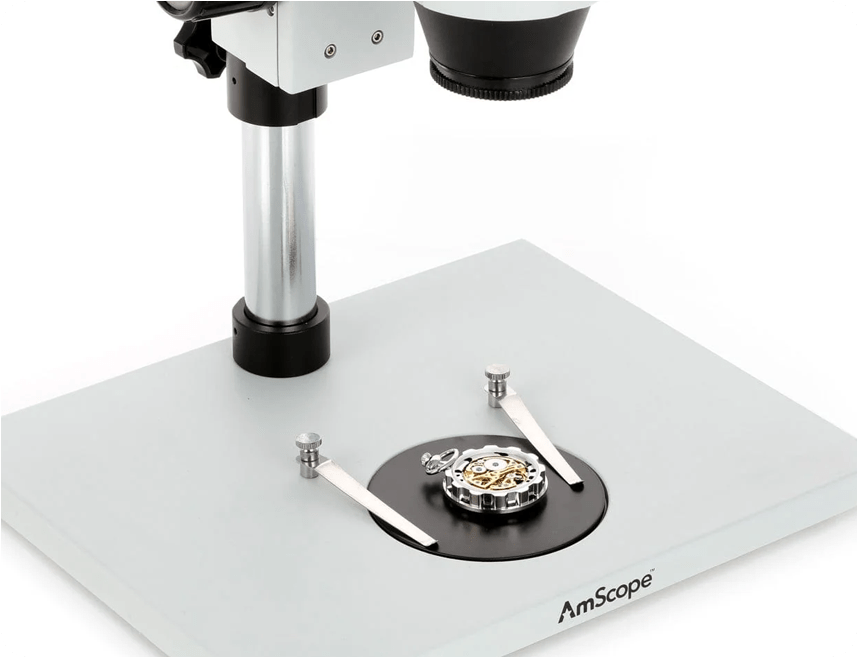

Pillar stand with large base |
| Stand Dimensions |
Base: 12.6" x 11" x 0.79" (320mm x 280mm x 20mm)
Pillar: 12" (305mm) height, 1.25" (32mm) diameter |
| Focusing-block Focus Range |
50mm |
| Stage Plate Diameter |
95mm |
Packing List:
One binocular stereo microscope head
10X eyepiece(s)
One pair eye-guards
One stand base
One stand pillar
One focusing block
One pair stage clips
One black/white stage plate
One hex wrench
Screws and washers
