Super Depth of Field Microscope
Key Features
- Produce high-resolution images with far greater depth of field than can be achieved on conventional light microscopes.
- Perform reliable and repeatable analyses of surface morphology using software-controlled motorization.
- Analyze topography in 2D and 3D using multiple observation modes to capture every detail.
The DMS1100 digital microscope combines high-resolution optical microscopy with advanced digital imaging to produce a new level of depth and clarity far beyond what can be achieved using conventional microscopes. This software-driven system uses motorized movements and cutting-edge algorithms to composite images with extreme depth of field, as well as 3-dimensional renderings of surface morphology.
Magnification
 |
Each microscope system can be customized to suit your needs. Two heads are available to cover different magnification ranges. The low-magnification head includes 1.5X and 9X objective lenses while the high-magnification head includes five objective lenses ranging from 5x to 100X. Each head incorporates an internal zoom optical system to increase the respective magnification ranges by factors of 0.7X to 4.5X. |
Motorized Automation
 |
From focusing to positioning the specimen, motorization ensures that movements are precise and repeatable. The stage’s movements including X-axis, Y-axis, and rotation can be controlled using software or the hardware controller. The head is also motorized to control Z-axis movement for ultra-precise focus control and automation. |
 |
Additionally, the upper assembly can be laterally tilted up to 90° in either direction. This allows for precision two-dimensional and three-dimensional measurements. |
4K Multi-Sample Imaging
Each head is equipped with a 4K (8MP) digital image sensor. Using motorized automation, complex specimens can be quickly scanned, then strategically imaged across all axes to produce high-resolution images with increased focus depth and field of view.
Observation Modes
Multiple illumination and contrast-enhancement modes are available including brightfield, darkfield, polarized-light, and differential interference contrast. Multiple modes can be previewed to find the optimal level of detail.
 |

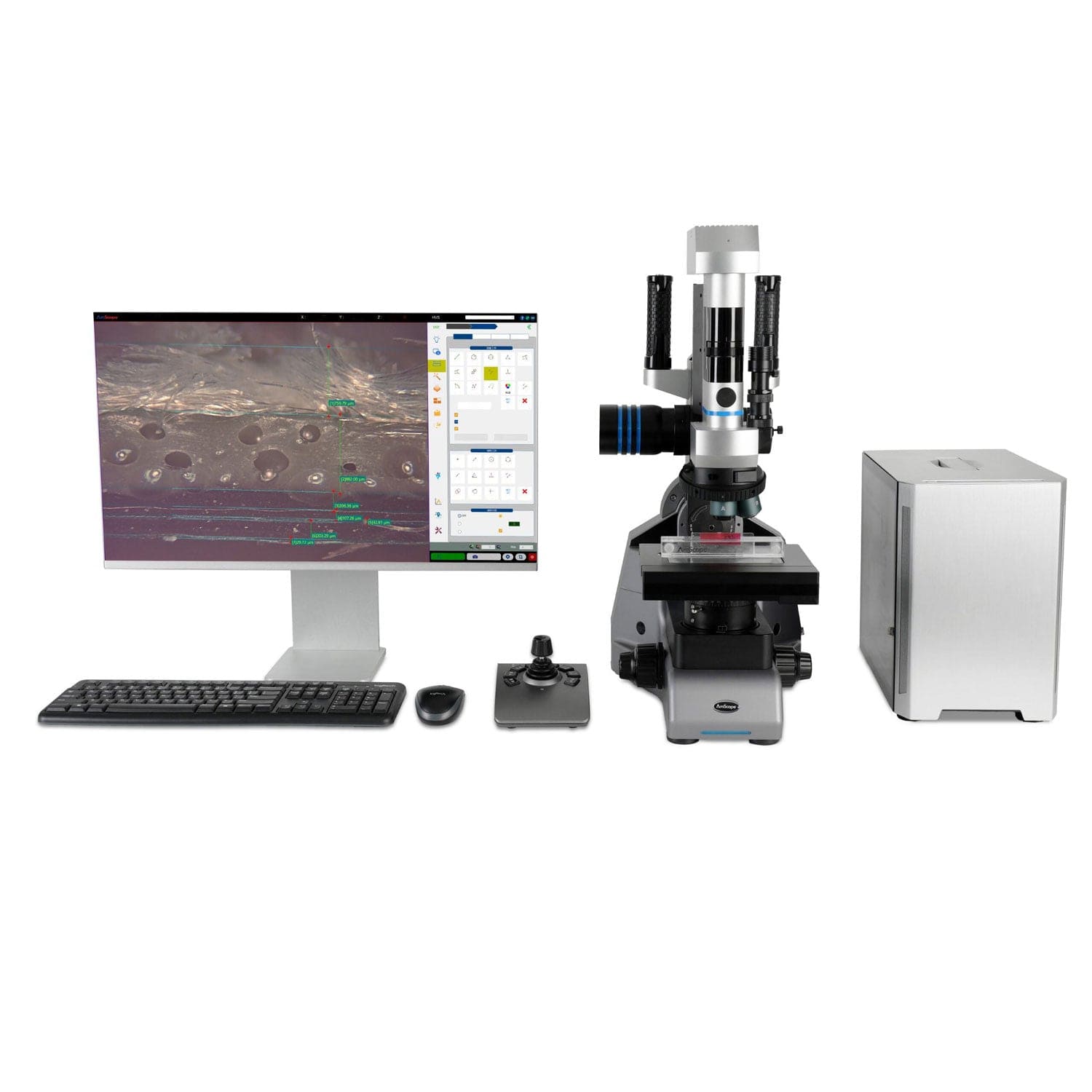

Each DMS1100 is packaged with a computer, monitor, and remote controller for programmable or manual control. |
| Optical System | Infinite conjugate |
| Optical Zoom | 0.7X-4.5X |
| Stage Dimensions | 205mm x 180mm |
| X-Y Travel | 50mm x 70mm |
| Stage Load-bearing | 6kg |
| Z-axis Resolution | 0.1µm |
| Transmitted Illumination | 3W LED, 6500K |
| Coaxial Reflected Illumination | 3W LED, 6500K |
| Annular Illumination | 5W LED, 6500K |
| Sensor Specifications | |
| Sensor Type | CMOS |
| Optical Format | 1/1.7" |
| Active Pixels | 8.3M (3840x2160) |
| Pixel Size | 1.5µm x 1.5µm |
| Sensitivity | 425mV @1/30s (f5.6) |
| Spectral Response | 380-650nm |
Magnification Tables
| Model | Objective Lens | Zoom | Reduction | Total Optical Magnification |
|---|---|---|---|---|
| Low Mag | 1.5 | 0.7 | 0.5 | 0.525 |
| 1.5 | 4.5 | 0.5 | 3.375 | |
| 9 | 0.7 | 0.5 | 3.15 | |
| 9 | 4.5 | 0.5 | 20.25 | |
| High Mag | 5 | 0.7 | 0.5 | 1.75 |
| 5 | 4.5 | 0.5 | 11.25 | |
| 10 | 0.7 | 0.5 | 3.5 | |
| 10 | 4.5 | 0.5 | 22.5 | |
| 20 | 0.7 | 0.5 | 7 | |
| 20 | 4.5 | 0.5 | 45 | |
| 50 | 0.7 | 0.5 | 17.5 | |
| 50 | 4.5 | 0.5 | 112.5 | |
| 100 | 0.7 | 0.5 | 35 | |
| 100 | 4.5 | 0.5 | 225 | |
AmScope products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:
• Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts.
• Ten Year Warranty for Euromex Microscopes: All our Euromex microscopes come with a ten (10) year factory warranty against manufacturing defects, covering labor and parts.
• One Year Warranty for Telescopes: All our telescopes come with a one (1) year warranty, except when specified in the description.
• One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description.
• One Year Warranty for Items labeled as “Product Ships From Manufacturer”: All products that are shipped directly from the manufacturer come with a one (1) year warranty, except when specified in the description.
Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc. Warranty does not cover microscopes, lenses cameras or other accessories that have become inoperable due to dirt or damage due to misuse or lack of maintenance.
Note: Buyers are responsible for return shipping and handling cost for warranty services. Our warranty covers parts and labor only.
