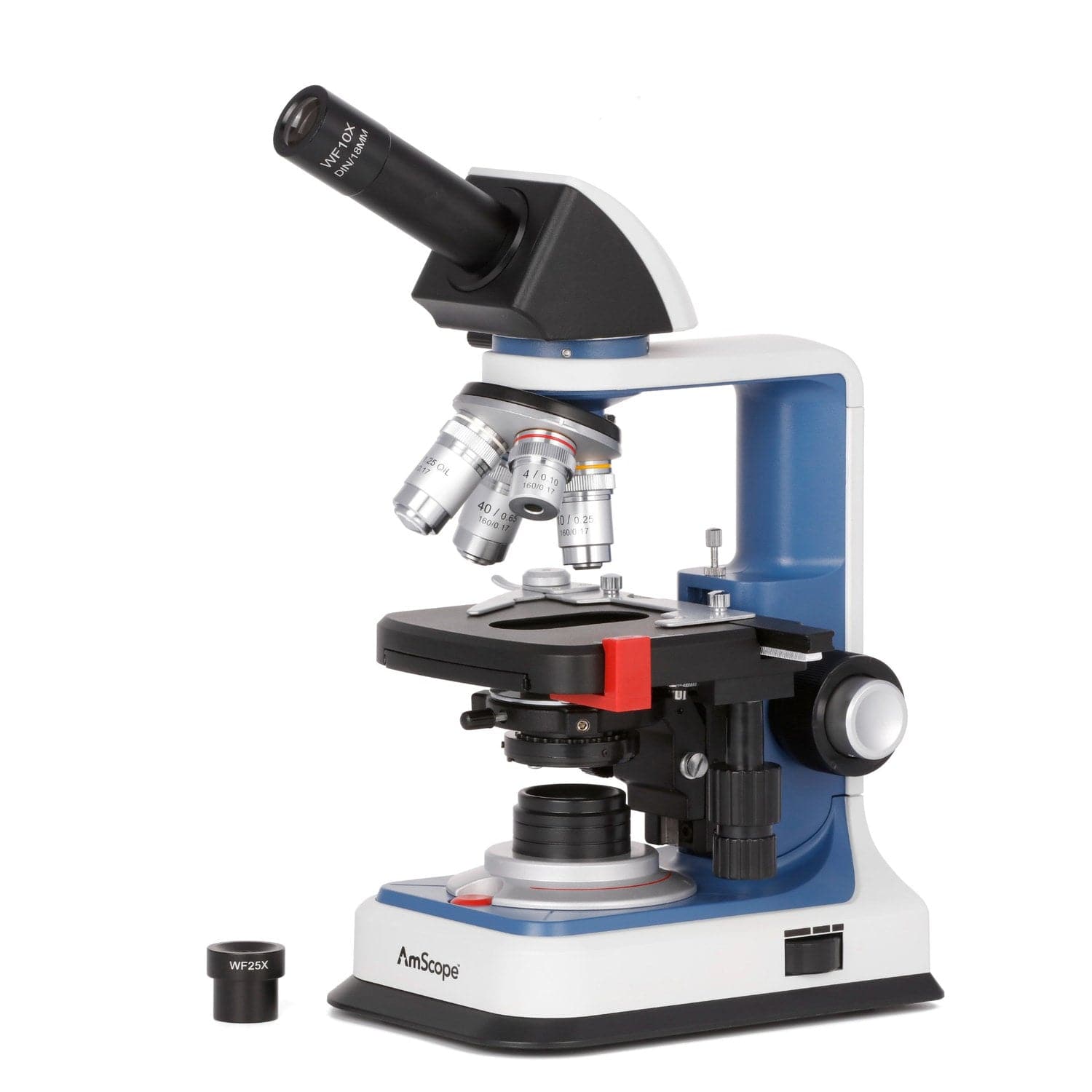

AmScope M620C-R Series USB-C Rechargeable Student Monocular Compound Microscope 40X-2500X
Key Features
- An economical monocular microscope with advanced features
- 40X to 2500X expanded magnification range using high-quality, color-coded objective lenses, and 10X and 25X eyepieces for six unique settings ideal for viewing cellular structures and microorganisms.
- 3-axis mechanical stage with low-position controls, and the coaxial coarse and fine focus
- The bright, daylight-balanced LED illumination uses our specialized fly-eye lens for improved uniformity
- Can run on AC power or rechargeable AA batteries
The M620C-R monocular compound microscope sports a new design and updated quality-of-life features such as dual power with Universal USB-C to USB and included AA rechargeable batteries! It is designed for teaching demonstrations, clinical examinations, and laboratory applications. An ideal microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting, and a centerable condenser. Use the microscope for studying fixed or live cells, bacteria, plants and soil, or water samples.
USB-C Rechargeable & Portable
A USB-C to USB-A cable and three rechargeable AA batteries are included, giving more options for how and where you are able to use your microscope. The low power consumption allows you to plug into any USB port such as a wall adapter, laptop/PC, or power bank to power the LED illuminator and simultaneously charge the batteries. This makes it the perfect microscope for large classrooms where power outlets are limited or for field research and mobile labs. The USB-C cable should only be plugged into the microscope when rechargeable batteries or no batteries are installed. Never plug in power when alkaline AA batteries are installed.
Viewing Head
This mode uses a simplified viewing head with a single ocular port. Various eyepieces can be used to increase the overall optical magnification.
Optics
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces expand the maximum magnification to 2500X with 6 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The Stage
The 3-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.
Transmitted Illumination
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution. Illumination is further enhanced by a centerable Abbe condenser, which can be realigned for any magnification to guarantee proper lighting.
Specifications
| Optical System | Finite-conjugate |
| Mechanical Tube Length | 160mm |
| Head | Monocular, 360° rotatable |
| Ocular Diameter | 23mm |
| Eyepieces | 10X, 25X |
| Objective Lenses | DIN standard |
| Objective Parfocal Distance | 45mm |
| Objective Mounting Thread | RMS 20.32mm |
| Objective Turret | quadruple |
| Focusing System | Coaxial coarse and fine focus |
| Fine Focusing Precision | 0.002mm |
| Stage Design | Double-layer with caliper |
| Stage Dimensions | 116mm x 125mm |
| X-Y Translation Range | 70mm x 25mm |
| Transmitted Illumination | Variable-intensity 1W LED, fly-eye lens |
| Condenser | NA1.25 Abbe condenser with iris diaphragm |
| Sub-stage Condenser-holder | rack and pinion, centerable |
| Power | Type-C to USB 5V/1A |
Objective Lenses
| Magnification | Corrections | NA | Working Distance | Immersion Medium | Cover-glass Thickness |
|---|---|---|---|---|---|
| 4X | achromatic | 0.10 | 37.5mm | — | 0.17mm |
| 10X | achromatic | 0.25 | 7.35mm | — | 0.17mm |
| 40X | achromatic | 0.65 | 0.29mm | — | 0.17mm |
| 100X | achromatic | 1.25 | 0.18mm | oil | 0.17mm |
Packing List:
- One monocular microscope head
- One microscope body
- Four objective lenses: 4X, 10X, 40X, 100X
- One 10X eyepiece
- One 25X eyepiece
- One blue color filter
- One dust cover
- One sample immersion oil
- Three AA rechargeable batteries
- Type-C to USB cable
AmScope products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:
• Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts.
• Ten Year Warranty for Euromex Microscopes: All our Euromex microscopes come with a ten (10) year factory warranty against manufacturing defects, covering labor and parts.
• One Year Warranty for Telescopes: All our telescopes come with a one (1) year warranty, except when specified in the description.
• One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description.
• One Year Warranty for Items labeled as “Product Ships From Manufacturer”: All products that are shipped directly from the manufacturer come with a one (1) year warranty, except when specified in the description.
Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc. Warranty does not cover microscopes, lenses cameras or other accessories that have become inoperable due to dirt or damage due to misuse or lack of maintenance.
Note: Buyers are responsible for return shipping and handling cost for warranty services. Our warranty covers parts and labor only.
